copy of mcf88 4-20mA / 0-10V to LoRaWAN Interface

200,00 £ excluding VAT
200,00 £ including VAT     Who pays VAT?
Množstvo



We deliver globally via FedEx and hold stocks ready for immediate shipment

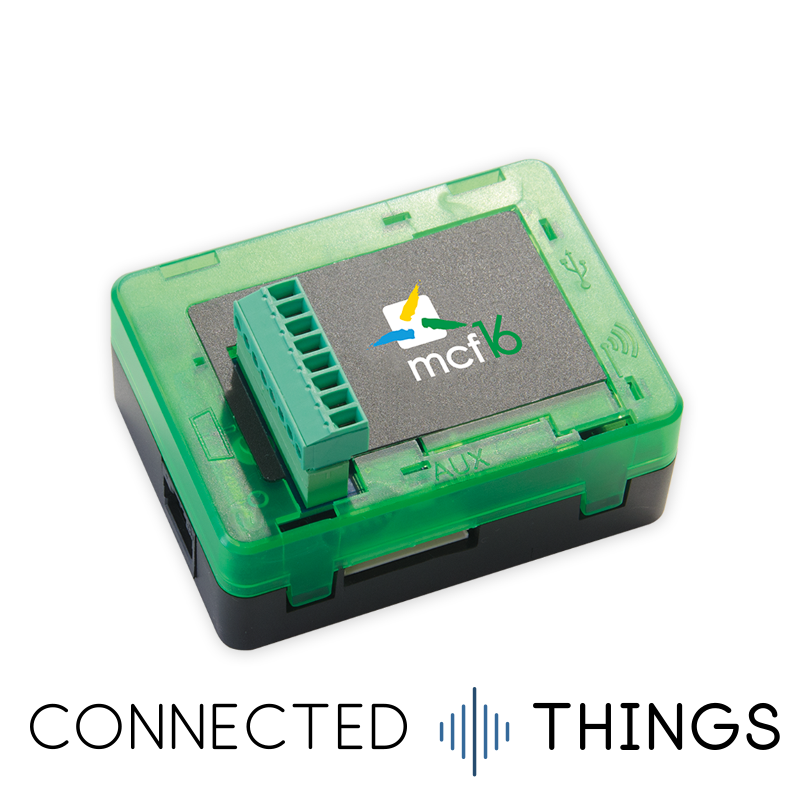

mcf88 4-20mA / 0-10V to LoRaWAN Interface

Part of mcf88's range of industrial LoRaWAN devices, this interface has two 4-20mA and two 0-10V input channels. This allows any standard 4-20mA or 0-10V analogue sensor to be integrated with your LoRaWAN network.

All inputs are opto-isolated, and mcf88's excellent built quality ensures that this device will reliably operate in an industrial environment.

Key Features:

  • Two analog current inputs, 4-20mA 12bits with disconnect alarm
  • Two analog voltage inputs, 0-10V 12bits
  • All inputs opto-isolated to 1kV DC
  • USB OTG interface for device setup and firmware upgrades
  • Easy-to-use configuration software provided to set up your device
  • Powered from 10-36VDC (optional PSUs are available)
  • Class C LoRaWAN® stack - EU868 band
  • Working temperature range -10 to +70°C
  • DIN-rail mounting option available
  • Powerful ARM Cortex M4 with RTC
  • 128 bit AES Encryption

Applications:

  • Remote industrial interface
  • Remote process supervision
  • Environment monitoring
  • Datalogging
MCF-LW06010
5 položky

Tabuľka dát

Indoor or Outdoor
Indoor
LoRaWAN Band
EU 868
