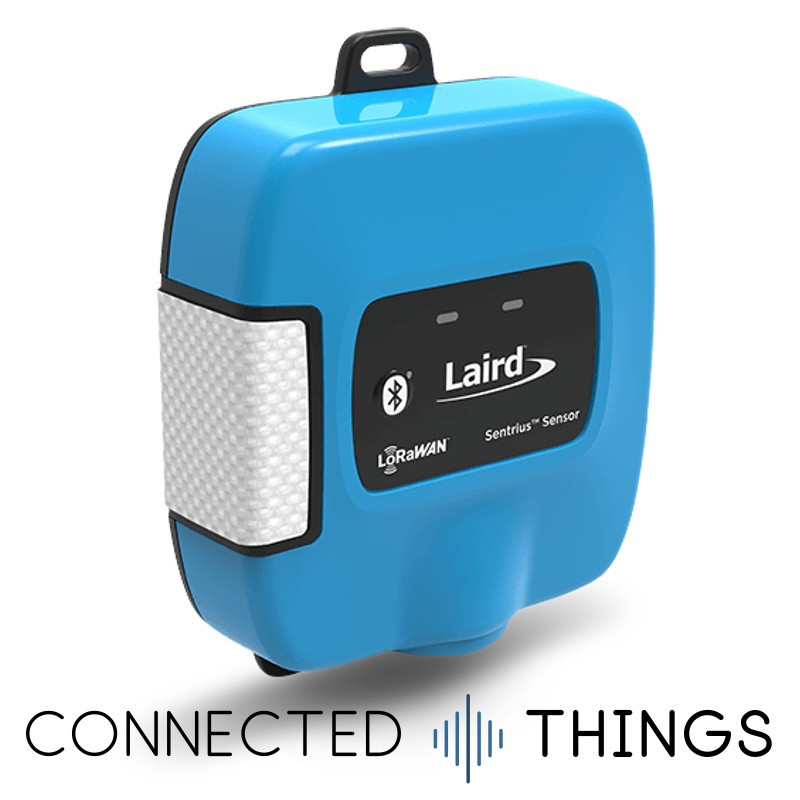

Laird Sentrius™ RS1xx Cold Chain Temperature/Humidity Sensor - AS923
We deliver globally via FedEx and hold stocks ready for immediate shipment
Laird Sentrius™ RS1xx Cold Chain Temperature/Humidity Sensor - AS923:
Laird's Sentrius RS1xx Temperature & Humidity Sensor is an industrial grade sensor, ideal for cold-chain applications. Designed to be wall-mounted, or fitted inside fridges and freezers, the sensor monitors the environment and ensures compliance with HACCP food safety regulations. The unit can be installed in walk-in refrigerators and freezers or cold rooms, in shops, restaurants, and more.
Powerful features include storage of data on the sensor when the LoRaWAN network isn't available, to be retrieved later when connectivity is restored. This helps to maintain a complete record of readings, even during power or network outages
Configuration of the sensor is made easy with Laird's Sentrius Sensor app for Android and iOS. Connecting via Bluetooth it allows configuration of measurement/transmission intervals and LoRaWAN keys. It's also possible to view historic stored measurements, and perform firmware updates.
This is the 923MHz variant of the RS1xx for Australia, we stock versions of this for different bands, and an external probe variant. Laird's range includes the Sentrius RG1xx LoRaWAN gateways, providing a full set of hardware for cold-chain monitoring.
- AS923 LoRaWAN band
- Bluetooth 4.2 for configuration
- IP65 waterproof enclosure, with breathable sensor cover
- Powered by 2x AA Alkaline or Lithium batteries
- 256k of flash memory to store readings
- Robust mounting lugs
- Temperature accuracy of +/-0.4°C over 10° to +85°C
- Humidity accuracy of +/- 3% over 0 to 90% RH
- Configuration and firmware updates via BLE
- 116 x 91 x 34 mm
Network Server and App Support
Sentrius sensors are fully compatible with any LoRaWAN network server, including the Things Network, Loriot, Senet, Chirpstack, and more.
RS1xx Versions and Other Laird Products
This product is the AS923 version, part number 455-00063, suitable for use in Australia.
We also stock other versions of this sensor for different LoRaWAN bands around the world, and both internal sensor and external probe versions:
- EU868 band for Europe:
Internal sensor (455-0002) or External probe (455-00069)
- US915 band for North America and Canada:
Internal sensor (455-0001) or External probe (455-00070)
- AU915 band for Australia:
Internal sensor (455-00062) or External probe (455-00067)
- AS923 band for Australia:
Internal sensor (455-00063) or External probe (455-00068)
We also stock Laird's Sentrius LoRaWAN Gateways, see all the Laird Connectivity products here.
A comprehensive guide on how to configure the Sentrius RS1xx sensors, including Bluetooth and LoRa configurations in detail, as well as setting up the sensor on a LoRa network server.Stiahnuť (1.94M)
Overview and specifications of the Sentrius RS1xx sensorsStiahnuť (330.82k)
Protocol and payload formats for the RS1xx sensorsStiahnuť (704.68k)
