SenArch Solar Powered LoRaWAN Gateway

$3,562.51 excluding VAT
$4,275.01 including VAT     Who pays VAT?
Zero Touch Gateway Provisioning: Not required
4G Mobile Data SIM Service: Not required
Solar Panel Size: 100W
Standard accessory pack: Included
Quantity
In stock



We deliver globally via FedEx

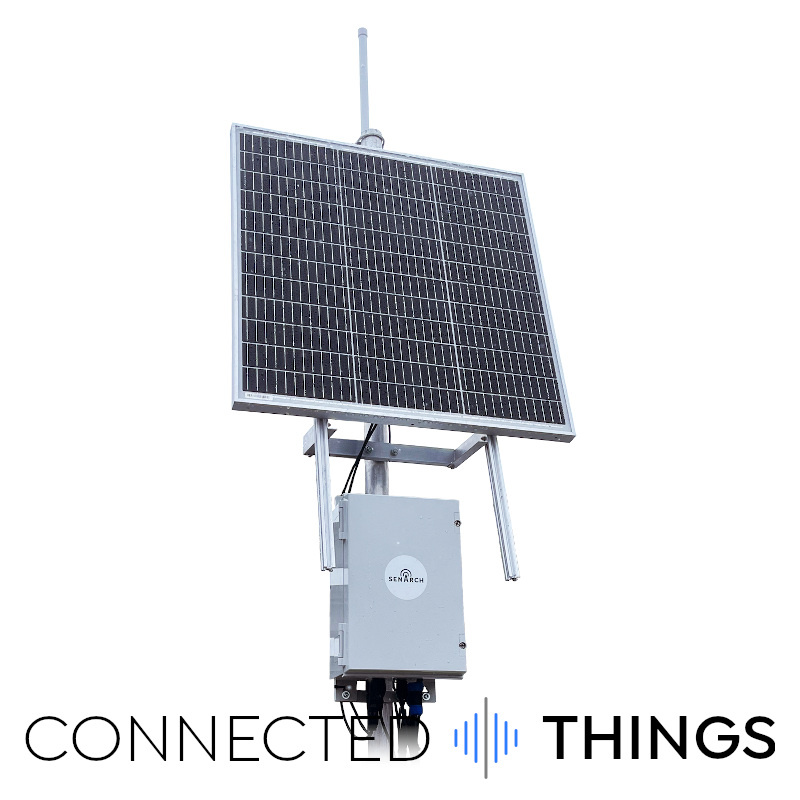

SenArch Solar Powered LoRaWAN Gateway

The SenArch LoRaWAN Gateway is revolutionary solar-powered gateway, featuring exceptionally low power consumption for excellent performance in even the darkest of conditions.

Solar powered gateways make it possible to build network coverage in even the most remote areas - and anywhere there is no power available. In contrast with other solar gateways, SenArch Arch I is designed to provide continuous, year round, coverage, charging a large battery via a 100W or 150W panel. We can provide advice on panel sizing for best performance.

SenArch uses robust AGM batteries for reliable operation in both hot and cold conditions - these can be charged at sub-zero temperatures, giving a very wide operating temperature range.

Arch I is a modular unit, with a separate solar panel, battery box and gateway for flexible mounting. The kit we stock is everything you need to get going, except a pole to mount it on!

Key Features:

  • Full eight-channel, EU868 LoRaWAN gateway
  • LTE-M cellular backhaul
  • Robust IP67 enclosures
  • -30° to +65°C operating temperature range
  • Built-in remote monitoring LoRaWAN sensor
  • Standard Basics Station or Semtech Packet Forwarder

Included in the SenArch Arch I kit:

  • SenArch Arch I gateway in tough IP67 enclosure
  • 100Ah AGM battery and steel battery enclosure
  • 100 or 150 Watt solar panel, including mounting bracket
  • 5.8dBi antenna, pole mounting bracket and 3m cable
  • All cabling with pre-terminated connectors

More information and guides

SenArch

GATRCH0001
7 Items

Data sheet

Manufacturer Part Number
ARCH I
Stock Level UK
7
Stock Level EU
0
